systemap

For Python and TypeScript

See what your coding agents are building.

Your agent draws a map of your system from the code. CI checks the map against the code. Each pull request shows what changed in the system.

uv tool install systemap
Open the live example Get started
commands map/model.py extract, facts map.json model the fix AgentThe coding agent CLIThe commands ModelThe map schema FactsExtractorThe source records CheckThe map checks
Five parts of the systemap map, from its own map/model.py.

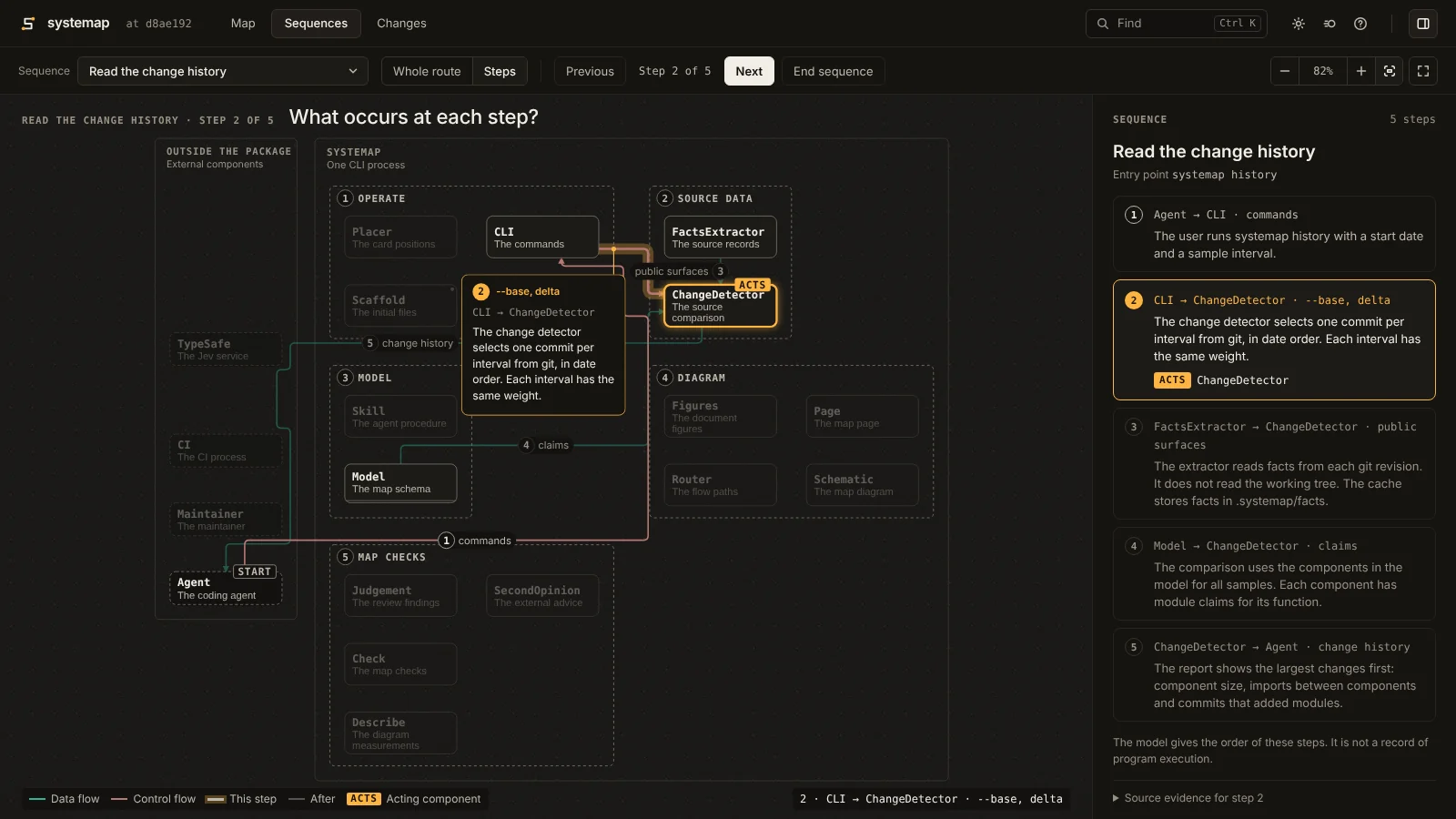

The Sequences view of the systemap map. Step 2 of 5 of the sequence Read the change history is on the map, with a note at the step.
Which steps make one operation? Go through a sequence one step at a time.

Not an import graph. Not a drawing.

Import graph

Shows every import. Does not show what each part does, or where the data goes.

Diagram

Shows what the team intends. After the next change, nothing tells you that it is wrong.

systemap

Shows what each part does and where the data goes. CI tells you when the map and the code disagree.

How it works

  1. The agent writes

    Your agent draws the map

    The agent reads your code with the systemap skill. It writes the parts, the flows between them, and the steps of each operation.

    # map/model.py
Component(
    id="Orders",
    does="Calculates the total of the order lines.",
    interface="total(order) -> float",
    implemented_by=("shop.orders",),
    entry="total",
    region="run",
),
Flow("Person", "CommandLine", "order path", "data"),

  2. CI checks

    CI checks the map against the code

    Each module must be in one part. A flow line must not go through an unrelated part. A part with changed code needs a new review.

    $ systemap check --brief
coverage: 89 of 90 modules mapped
  unmapped: systemap.notify (no component has this module claim)

    A new module, systemap/notify.py, is in no part of the map. The command exits with code 1.

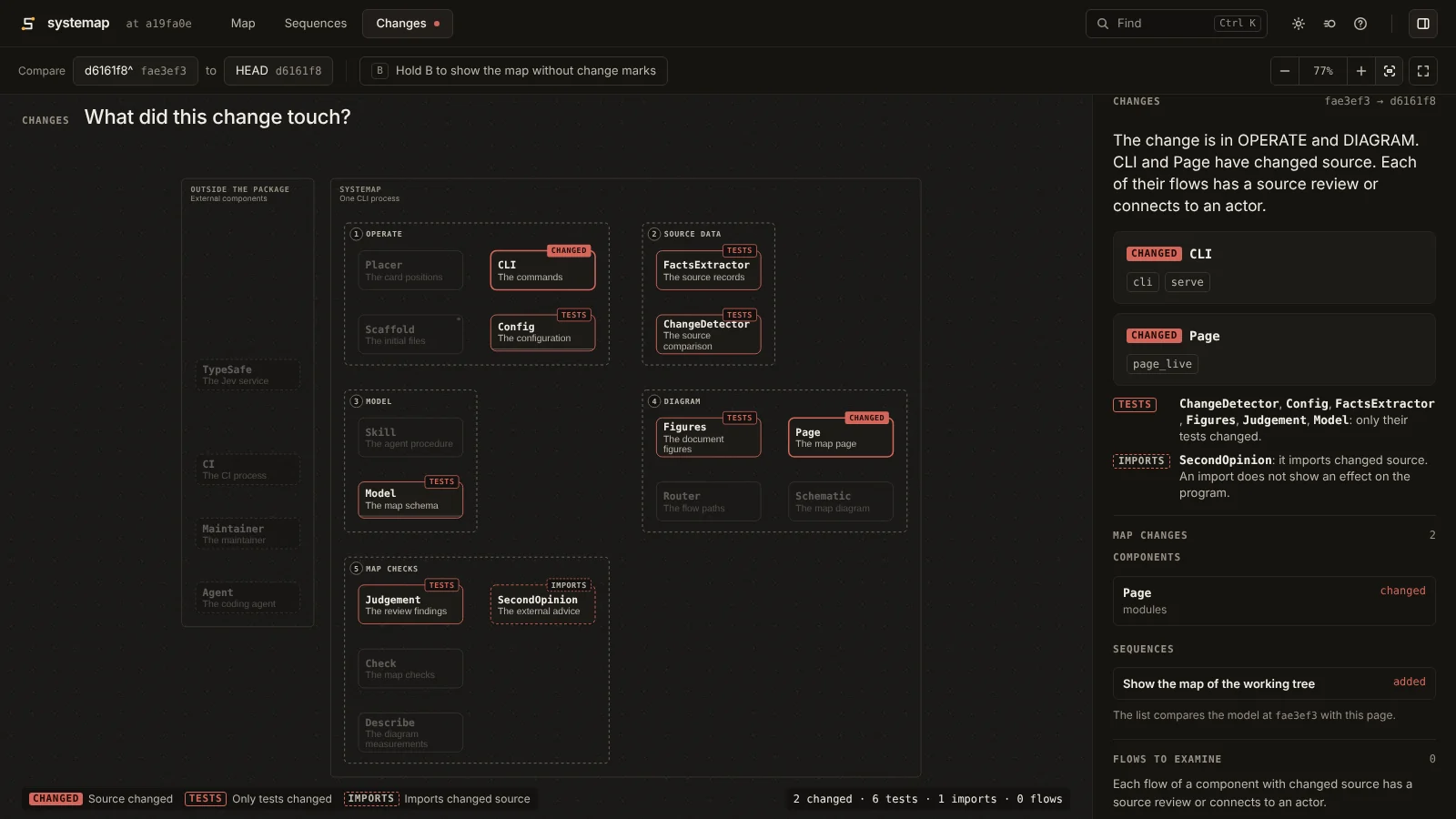

  3. Each pull request

    See what a pull request changed

    The diff shows lines. systemap shows the parts that changed and the map updates that they need.

    $ systemap delta --base d6161f8^ --head d6161f8 --no-jev --brief
delta: d6161f8^ (fae3ef3) -> d6161f8: 2 modules changed, 1 added, 0 removed, 0 moved. 2 of 16 components specified
The map needs an update (2):
  source review: CLI has changed code in systemap.cli, systemap.serve. Compare its description, flows, sequences, and invariants with the new source.
  source review: Page has changed code in systemap.page_live. Compare its description, flows, sequences, and invariants with the new source.
No action is necessary for these changes (1):
  added: systemap.page_live, with a claim in Page

    Commit d6161f8 added systemap live.

Claude Code

Watch the map while your agent works

The systemap plugin shows the live map above the prompt. After each turn that changes files, the map updates. Type /map to open it.

/plugin marketplace add 0xfauzi/systemap
/plugin install systemap@systemap

Other coding agents use the same skill. Coding agents

Start

Give your agent the instruction that systemap init prints. Get started gives each step.

uv tool install systemap
systemap init     # the configuration, the agent skill and a CI workflow
# Your agent writes map/model.py.
systemap check

What it does not do

  • It does not run your program. A clean check shows that the map agrees with the code. It does not show that the code works.
  • It reads Python and TypeScript only.
  • Your agent writes the map. Review it as you review code.

All limits · Trust and security
